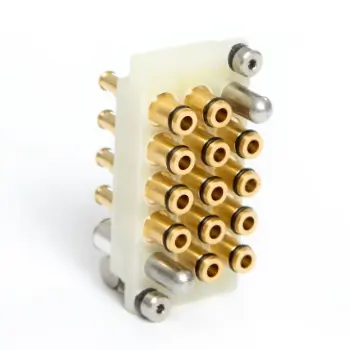

13-pin pneumatic coax block | receiver side

Article number: N/A Categories: , ,

13-pin pneumatic coaxial block I Receiver side

Pneumatics:

  • Fitted with KSV-PK-4 (VGRCB-13 tyre)
  • 6mm hose

Coax:

  • (VGRCB-13C)
  • Voltage 250VAC
  • Current 5A
  • Contact resistance 39mΩ
  • Impedance 50Ω
  • Line resources 3.7Ghz (-3db)
  • Absorption capacity 8.8pf
  • Inductance 42mH
  • Resistance 25,000 cycles
  • Network connection SMB
  • Max. Power loss *: 25W
