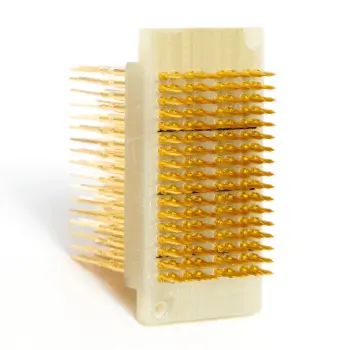

Interface block R-136-Pk-W I 136-pin signal block

136-pin signal block | receiver side

Name: 136-pin signal block | receiver side
SKU: 9313
Availability: InStock

136-pin signal block

Clear

Add to request

Article number: N/A Categories: Fixture Spare Parts, Interfaceblocks, Accessories

Beschreibung
Explanation

Receiver pylon block 136-pin Signal block: Pyramid small (Pk) / Dagger (D)
Material: 6mm EGS619
Spring contact - head shape = pyramid small / dagger
Sleeve aligned with WireWrap
Needle projection = 4.3mm (Pk) / Needle projection = 7.2mm (D)
Recommended working stroke: 2.6mm
Grid dimension = 2.54mm
Max. Rated current 1A

Explanation

IFB = Interface block
R = Receiver
170 = Number of contacts
Pk / Pg / D = head shape
WW / L / R = Sleeve connection
HS = High Current / Supplement
4A = value
