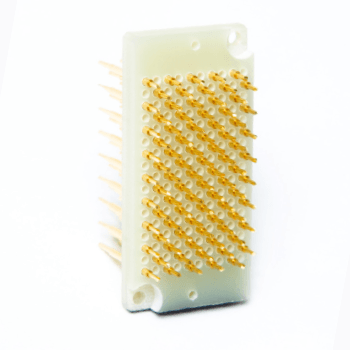

85-pin signal block | receiver side

Article number: N/A Categories: , ,
  • Receiver pylon block 85-pole: pyramid small (Pk) / dagger (D)
  • Material: 6mm EGS619
  • Spring contact - head shape = pyramid small / dagger (GSP-2B)
  • Sleeve aligned with WireWrap/ solder connection
  • Needle protrusion = 6.2mm
  • Recommended working stroke: 2.6mm
  • Grid dimension = 2.54mm
  • Max. Rated current 1A

Explanation

IFB = Interface block
R = Receiver
170 = Number of contacts
Pk / Pg / D = head shape
WW / L / R = Sleeve connection
HS = High Current / Supplement
4A = value
