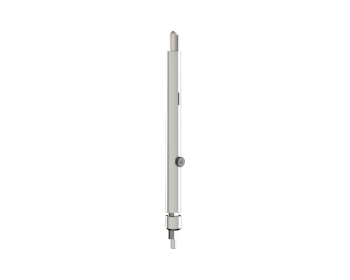

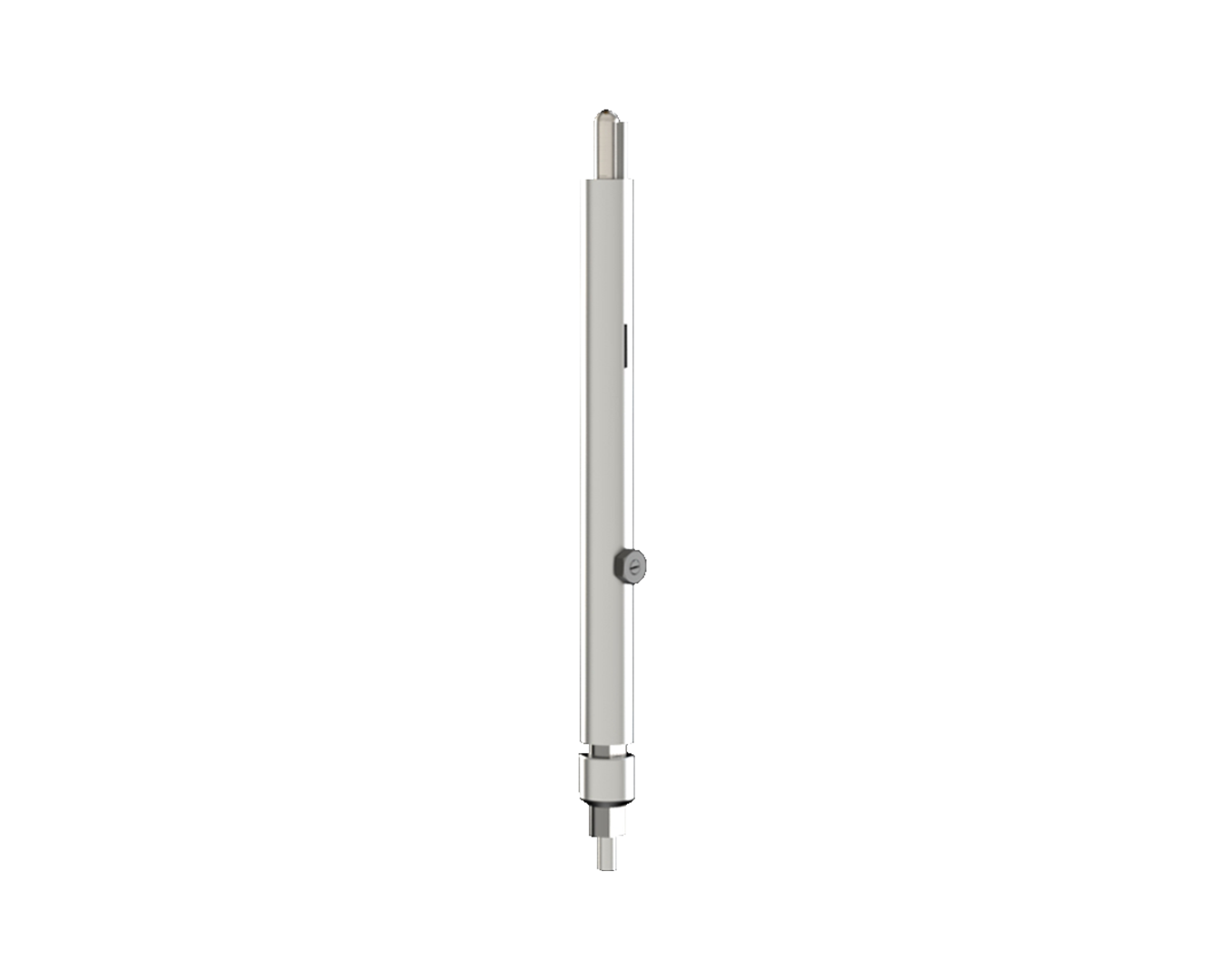

MOUNTING TOOL FOR ATX COAXIAL PROBE V2.0
APPLICATION
The base body is mounted in the hold-down or pin carrier plate using a sleeve. To do this, drill a hole in the hold-down or pin support plate and then insert the sleeve of the probe using the assembly tool. This enables flexible height compensation and ensures precise alignment.
Note: The sleeve must protrude at least 3 mm.
