Manual button actuator

RELIABLE MANUAL OPERATION OF VERTICAL/HORIZONTAL BUTTONS & SWITCHES
Vertical | 90° deflection

Our manual probe actuators enable precise and space-saving manual operation of upright/recumbent probes and switches on printed circuit boards. This solution makes it possible to operate the components during testing under a closed bonnet in both the mechanical and vacuum areas.

Executions

Our manual button actuators are available in two versions:

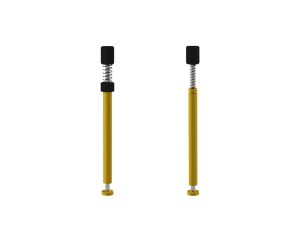

• Vertical button actuator for vertical buttons

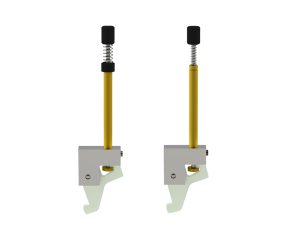

• 90° deflection button actuator for horizontal buttons and switches

Compatibility

Both the vertical button actuators and the 90° deflection button actuators can be used individually in any test system in which vertical/horizontal buttons and switches have to be operated during the test procedure - whether mechanical or vacuum.

Advantages:

• Simple assembly
• Individually adjustable
• Optional vacuum-tight
• Cost-efficient solution

>> Fact sheet
